RPS 3000w Renewable Power Station
The Tough Touring RPS 3000W is a 3000w constant Load Renewable power station - is just 160mm Wide, 840 mm Deep and 410mm high... IT will operate multiple 1000w and 2000w appliances at once - (3000w total) - with peak loads of 6000w for 20 seconds.
The RPS 3000 will need at least 400amps of Input power to run to its full potential - typically this means 2 x 200amphr lifepo4 batteries are required. There are batteries available with the unit in the drop down menu or you can supply your own.
It Comes Complete with a Cabling Kit to connect it into your vehicle. (Details below)
Watch a quick video of its smaller cousin the RPS 1000w here -
Its Off Grid recharging rate of up to 960 Watts sets it apart from other Portable power stations on the market - capable of replentishing a 100amphr battery in just an hour and a half from flat - its 'Replentishing' rate makes it pack out enormous power day in day out.
Designed Specifically for customers wishing to power their Vans off grid via their Touring vehicles -
The Tough Touring 3000w Renewable Power station Delivers Constant 15Amp 240Volt power via its 15Amp ip68 Rated Power Point, as well as 12 volt power from its numerous Anderson Plugs and USB points.
Made to order with the Power Outlet console on either RHS of the UNIT , LHS of the Unit or on the End Face.
The Units are Compact and Portable/ designed to be able to be switched between vehicles saving money and rebuild time on replacement vehicles over time... All Output plugs including the Cig Socket are wired and fused in individually to allow them to handle up to 50Amp Current loads, Single Line set up like this also stops single point failure not knocking out other components.
The RPS comes complete with the connections you'll need to connect your solar panel, Fridge Extension leads and your vehicles Alternator/cranking battery...
Watch the Loom kit Inclusions video here - It helps explain what all the cables are for...
https://youtu.be/K90TkIvqzVI?si=hUh3lZM5WUiJ0YZC

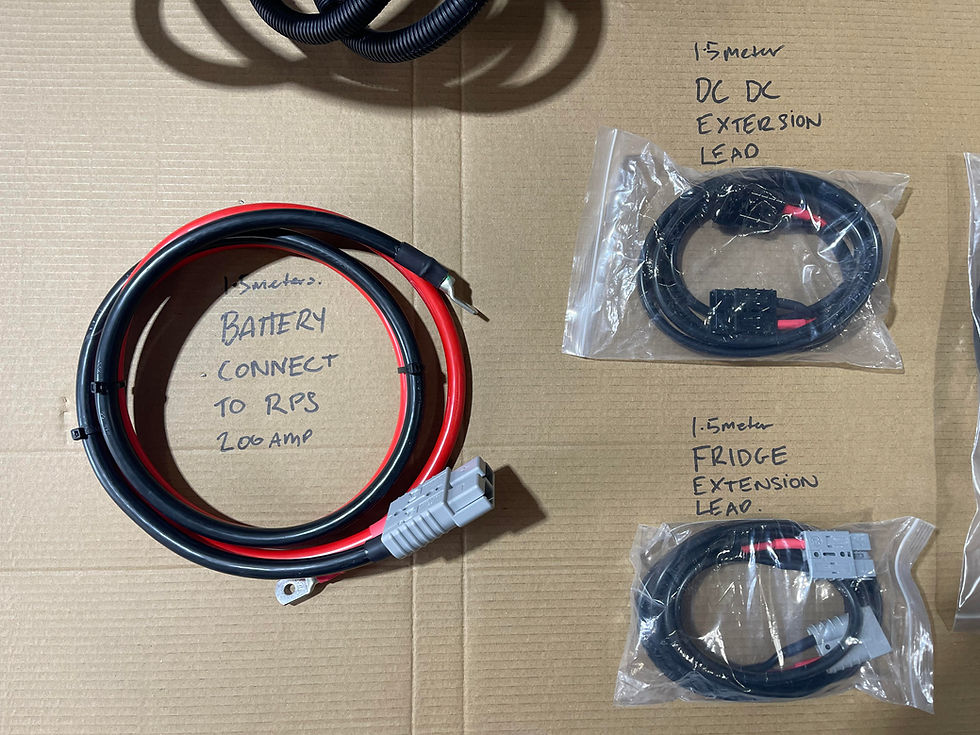

INCLUDED CABLE KIT DETAILS:
(Contents also shown in Listing Picture and the video)
* 6meter x 75Amp Wiring Loom kit to connect it to your cars cranking battery. Midi fuse, Lugs Anderson cable and conduit included. ($250)
* 2 x 200amp Heavy Duty battery connector cable - 2m of OB 125 Copper twin core with M8 Terminals at one end and a 200Amp Anderson at the other, Its the wire cable that allows your battery to be connected 'plug and play' into the back of the RPS unit - ($250)
* 2 x 50Amp Fridge extension - 2m (Grey anderson at each end) ($70 each)
* 1 x 50Amp Solar Cable - 3m Long (Red anderson at each end) ( $120).
* 1 x Black to Black DCDC extension cable (2m)
BATTERIES CAN BE OPTIONED INTO THE KIT - OR PROVIDE YOUR OWN
You will see that the rear of the Renewable Power station has Twin 200Amp Anderson Plug and Play Battery Ports, allowing you to install your batteries seperate to the unit in convenient locations to save space. Allowing you to run anywhere from 400amp hrs up to 600amphrs of battery storage externally.
At Least 400amphr of Lifepo4 (lithium) batteries are reccommended to be used in conjunction with this RPS 3000w unit to provide adequate storage and power. Please note - YOU CANNOT RUN THIS UNIT WITH A SINGLE 300AMPHR BATTERY. The unit needs combined batteries capable of 400amp constant output loads.
We reccommend using 2 of our our high output AGA Single 200amphr Slimline Lifepo4 Batteres as they are constructed with high output cells and a 200Amp BMS to match higher Input and output loads... (For more details on the batteries we supply - see the listing here/ they are included as option on this pages battery options list ).
https://www.toughtouring.com.au/product-page/200-amphr-lifepo-4-slimline-battery-200amp-constant-load
Please note that if you purchase 2 of our batteries to go with the RPS , the second battery connect cable is also included.
If you are going to use your own batteries - (and your running 2 batteries) - You can purchase the 2nd required 200amp Battery Connect cable seperatly here -
https://www.toughtouring.com.au/product-page/battery-connect-loom-kit-200-amps
Specifications
SPECIFICATIONS
Dimensions 820 ( Deep) x 400 (High) x 160mm (wide) SOLAR Charger Victron 100/50 MPPT Solar Regulator... Car Carger (DC DC) Victron xs 12/12 50 Amp DCDC Charger
DCDC Smart with Bluetooth connect to Iphone, Android.
Combined Charging time (SOLA AND DCDC SPEED) 4 Hours from Battery Empty to Fully Charged can be achieved in perfect conditions with 400amphr of onboard Lifepo4 batteries.
USB (Twin) Out 5a Max - Twin Chargers USB A , B and C in Flush mount terminals Display Led Voltmeter Installed in convenient position for Glance Batter Check... Color coded green/blue/red display for fast 'Glance' battery state checks. Blue Tooth Connectivity to Iphone and Android via the Victron Connect App for all components to your mobile. RECCOMMENDED Battery Reccommended - Twin 200Amphr Lifepo 4 batteries (BATTERYS NOT INCLUDED UNLESS OPTIONED) RECCOMMENDED Cell chemistry Reccommmended - LiFePO4 Lithium ion Peak Plug in Battery capacity 400Ah - (2 x 200AMPHR) (Approx 5000Wh) Port Type Output Anderson x 4 (1 RED for Solar IN, One BLACK for DCDC in, 4 x GREY for 50am OUT to compressor and Fridge) 2 x Anderson In RED SB50 Anderson In for Solar, Black SB50 Anderson In for DCDC . 4 x Grey Anderson 50Amp Each - TWo on Front and Two on the back DC DC Battery Port 3 x 200Amp Anderson " Battery Link " ports at rear - You can Plug and Play up t0 3 x 300 Amphr batteries no problems. 1x 12V cigarette socket - 12V , 5A (Reccommended Max) Can be used as a charging port for accessories / additional Phone USB ports or Fridge out port AC - Inverter Output 240V,
3000W / Peak 6000W for 15 seconds - Terroidal - Pure sine inverter - Victron Phoenix
Durability Consistent as Weather 'resistant' Sealed against Dust ingress when run in LID ON mode. IP 66 Rated 15 Amp caravan output socked and RCD Switch General Splash resistant. USB Ports will rust over time if exposed to salt / water - Reccommended to keep under cover Linkable Yes - Via 200Amp Anderson (Cross over cable sold sep) - Can be Linked to additional Batteries - eg... 200AmpHr of Lifepo4 battery Solar Controller MPPT - Victron 100/50 Smart Controller, Bluetooth Weight 24Kg COLOR CODING RED anderson Port for Solar in
Black Anderson Port for DCDC In. Ports are Keyed Differently to only accept correct cables.
Working Temperature -10 to 60C
The statutory warranty is 12 months from date of purchase.The battery management system provides over-charge protection, over-discharge protection, over current . This Renewable Battery Power Station is designed to run stand alone in vehicles - Chargers are Fused and all outputs are fused.
More info
INPUTS ON ALL UNITS:
1x Red Solar Anderson IN :(Accepts up to 50amps/500w / 100 Volt solar power Input) - Run Through a Victron 100/50 MPPT Solar Regulator.
1 x SB50 Black Anderson for DC in and or Charging Port - Victron Xs 12/12 50 Amp DC DC charger (can operate at up to 50 Amps)
4 x Grey Anderson IN / OUT - 2 at the front face and 2 at the rear
2 x 200 Amp GREY Anderson plugs at rear- Batteries IN/OUT.
Also suitable for TWin ARB air compressors.
OUTPUTS:
ALL UNITS HAVE
1 x IP66 Weatherproof Rated 240Volt / 15Amp Power point (Also accepts typical 240 volt household appliances)
1 x CIG socket
2 x Grey am200p Andersons
4 x Sb50 Grey andersons (Both In and Out compatable)
2x USB Plugs
1 Volt Meter
Large ip66 Rated Outdoor inverter ON and OFF switch
USB a,b and C
Internal Chargers100/30 MPPT Victron Blue Tooth Smart charger (Solar Charger can handle up to 400w at 36 VOlts)
30A Victron DC DC charger
External 30AMP AC charger can be used to charge the unit via any of the 4 Grey anderson ports (in and Out) effectively turning the unit into a UPS.WEATHER RESISTANT BASH RESISTANT BOX:
3mm Australian Made Aluminium Case - Removable top / sides and face console. 600mm deep x400 High x 160mm wide
RECOMMENDED Battery:
Minimum of a Single 100amp hour High Output (150 - 200Amps) Prismatic Integrated BMS Lifepo4 - Shown here on the Link below (the Optioned batteries in our drop down menu):
Or if you prefer a single 200 amphr battery - This ome
Shown here - 200amphr Lifepo 4 "foreverpowered High Output'
LOOM KITS TO CONNECT THE Power station TO YOUR SOLAR PANEL AND VEHICLE ALTERNATOR ARE INCLUDED - If you need extras - They are LISTED HERE
DCDC WIRING LOOM KIT - 75Amp rated DC Wiring Loom from Cranking battery to the RPS, We make and sell these seperatly also as a kit in the event of you wishing to run an extra one to the rear bumper to also charge your caravan or camper... You can purchase an extra loom kit here https://www.toughtouring.com.au/product-page/dcdc-loom-kit-for-renewable-power-station-dual-battery
This Box is designed to be weatherproof, however power through fittings cannot be used when wet and water ingress and damage to the unit is unavoidable if submerged.
